4-Channel Relay Module Case
por Mr Hair en Thingiverse
This is a case for a SainSmart 4-channel relay module that I have wired to my raspberry pi and controlled through Octoprint. I designed the case with the following features in mind: - Small form factor - Access holes for JD-VCC pins as well as the line-in pins - Access holes for the screw terminal..
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Mr Hair.
Archivos (4)
- Categoría
- Para tu impresora
- Formatos
- STL, STEP, ZIP
- Descargas
- 14,930
- Publicado
Sobre este modelo

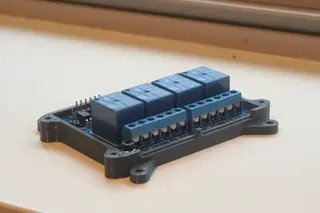

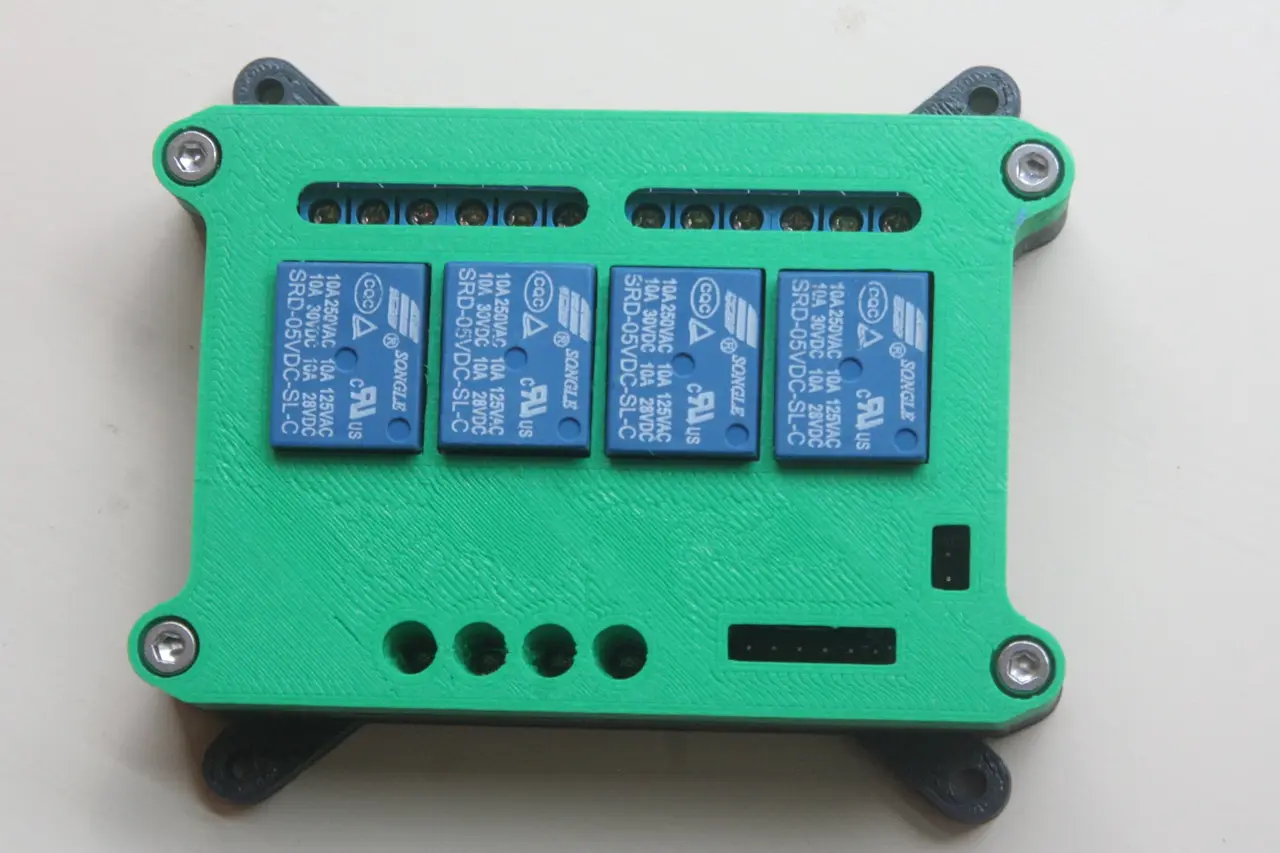

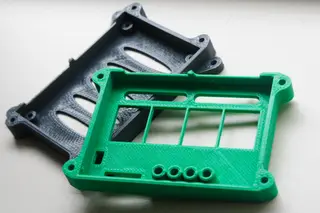

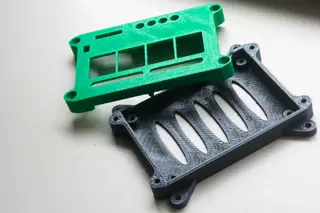

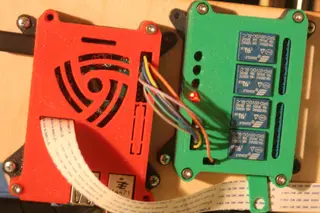

This is a case for a SainSmart 4-channel relay module that I have wired to my raspberry pi and controlled through Octoprint. I designed the case with the following features in mind: - Small form factor - Access holes for JD-VCC pins as well as the line-in pins - Access holes for the screw terminal - Tube/holes for easy viewing of the status LED's
The style of the case was based upon this Raspberry Pi case (http://www.thingiverse.com/thing:922740).
Descripción original del autor, publicada en Thingiverse.
