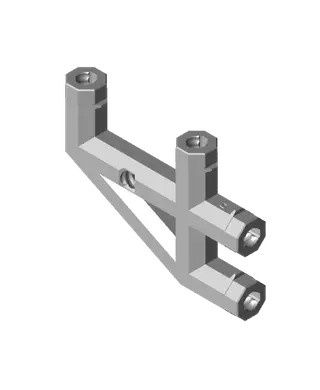

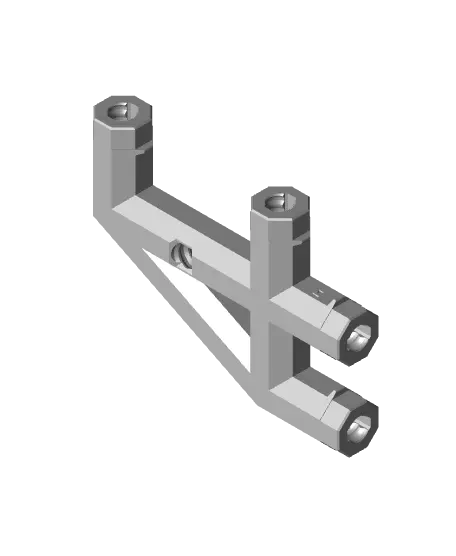

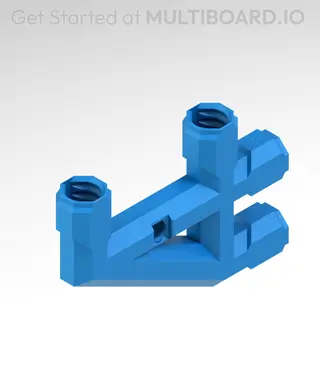

3x2 MU - Low Profile Bolt-Locked Bracket

Connect these brackets to your tiles using Multiboard Snaps (use a Weight-Bearing Snap at the top), and lock into place using Locking Bolts (https://than.gs/m/1310062).

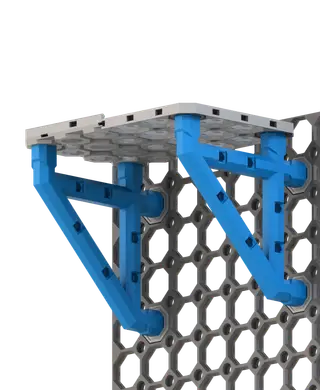

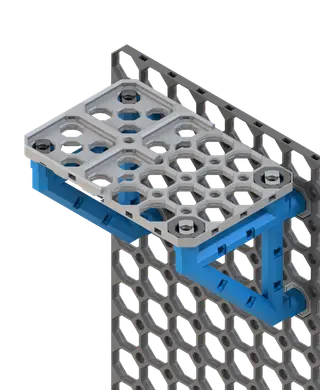

Brackets can hold another Tile, a Multibin Base Plate (https://link.Multiboard.io/base-plates), or a Tray (https://link.Multiboard.io/tray): - Holding a Tile: Connect your Bracket and Tile together using Snaps (facing down). Then lock using Locking Bolts (https://than.gs/m/1310062). - Holding a Base Plate (https://link.Multiboard.io/base-plates): Place the Base Plate on the brackets and lock using Locking Bolts (https://than.gs/m/1310062). - Holding a Tray (https://link.Multiboard.io/tray): To hold a Tray, use Bracket-Multipoint Joins (https://than.gs/m/1183172), you will also need a Multipoint (https://than.gs/m/1123334) and a Locking Bolt (https://than.gs/m/1310062).

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

---

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
