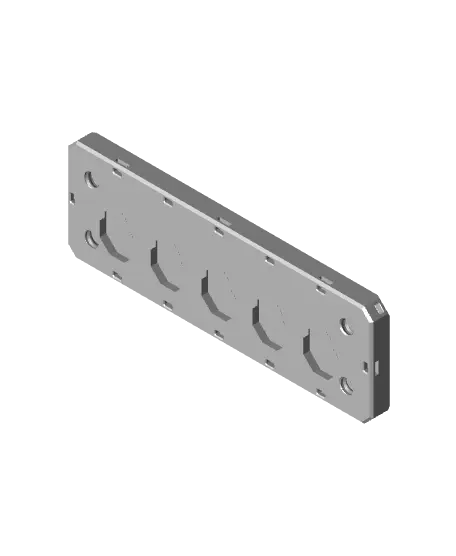

3x1 LU - Tray
por Jonathan K en Thangs
Trays can be placed on Drawer Shells or on Bolt-Locked Brackets (https://thangs.com/search/"MB123"%20creator%3A"Keep%20Making"?scope=thangs&view=grid)). A Multibin Panel (https://thangs.com/search/"MG23"%20creator%3A"Keep%20Making"?scope=thangs&view=compact-grid) can also be paced on top of the Tray
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- 3x1 - Horizontal Bin Tray.stl STL · 5,6 MB
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 984
- Publicado
Sobre este modelo
Trays can be placed on Drawer Shells or on Bolt-Locked Brackets (https://thangs.com/search/"MB123"%20creator%3A"Keep%20Making"?scope=thangs&view=grid)). A Multibin Panel (https://thangs.com/search/"MG23"%20creator%3A"Keep%20Making"?scope=thangs&view=compact-grid) can also be paced on top of the Tray.

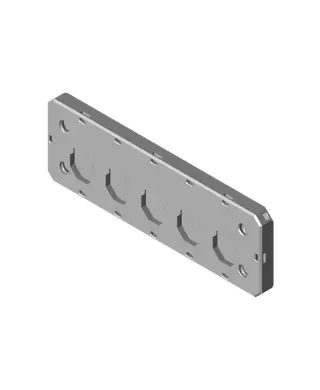

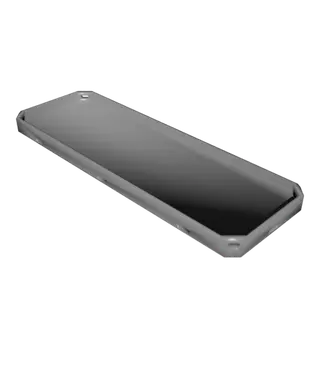

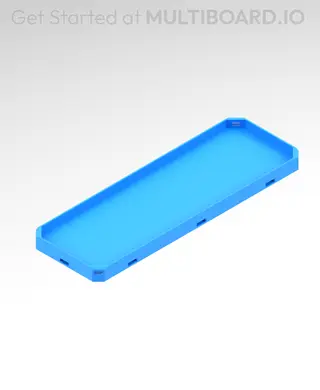

This Tray is 3x1 cells (150x50 mm). - Drawer Shells: Place the Tray on top of Bin Shells that are Horizontal (usually Drawers). Attach it using X Multipoint - Rail Pop-Ins (https://than.gs/m/1123421) - Bolt-Locked Brackets: Attach the Tray to the Bracket using a Bracket-Multipoint Adapter.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
For more information about printer settings, click here (https://multiboard.io/knowledge-hub/printing-guidelines).
---
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
Descripción original del autor, publicada en Thangs.
