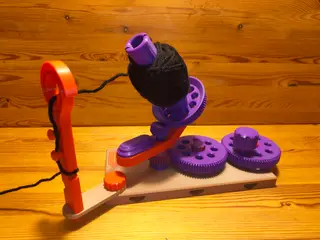

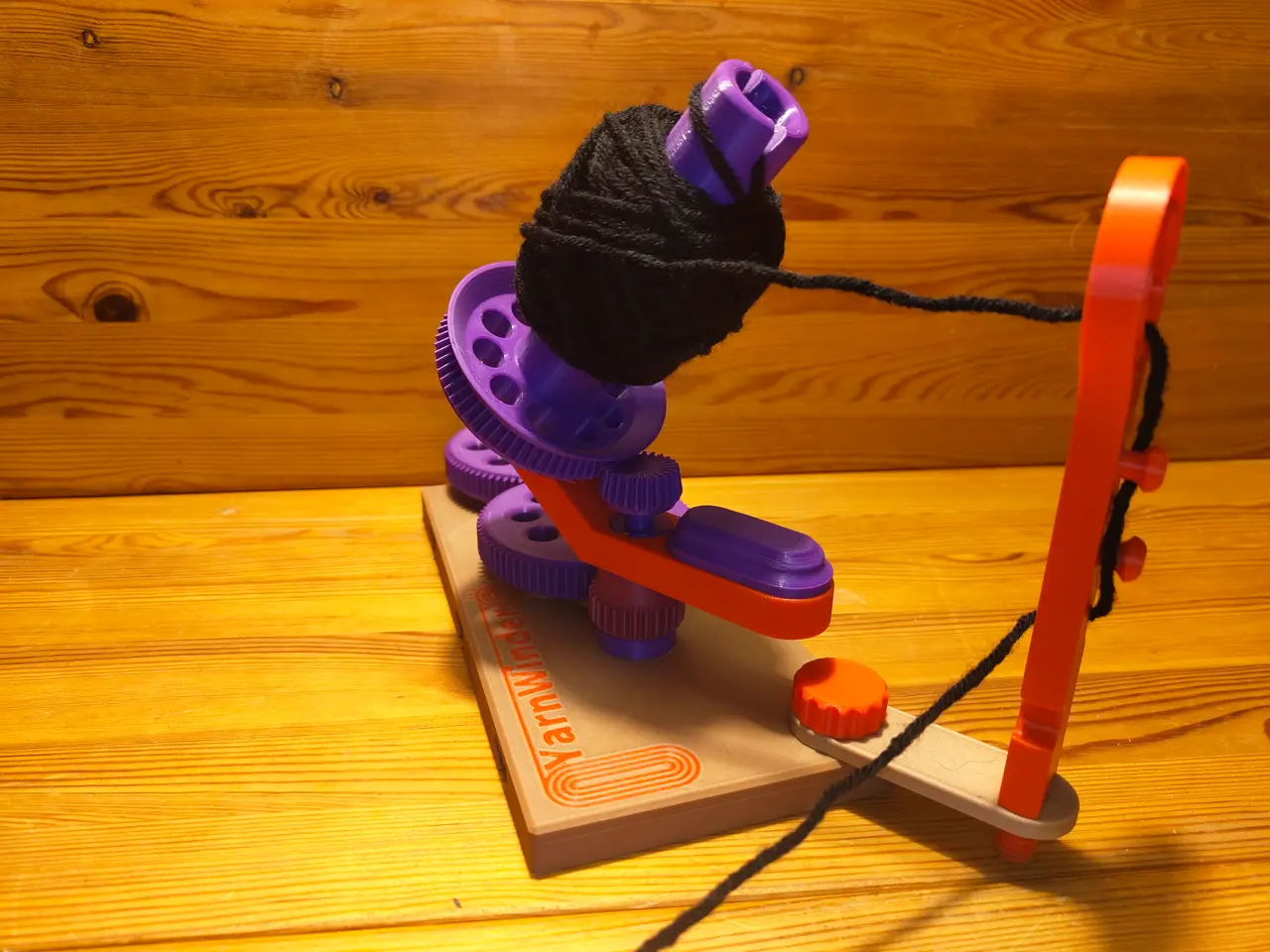

3D-Printed Yarn Winder – Gear-Driven Easy-Print Edition 100% Printable
por BGDglider en Printables
Organize yarn and cords with this fully 3D printed winder – simple design, no extra parts required. Now with Gears
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a BGDglider.
Archivos (25)
- Axis.stl STL · 10,5 MB
- Axle end.stl STL · 2,1 MB
- Clamp mount.stl STL · 2,7 MB
- Clamping screw.stl STL · 23,9 MB
- Drive screw.stl STL · 6,0 MB
- Drive wheel screw.stl STL · 11,3 MB
- Drive wheel.stl STL · 8,7 MB
- Foot.stl STL · 2,7 MB
- Gear screw + Drive wheel screw horizontal version.stl STL · 4,4 MB
- Gear screw shorter head.stl STL · 11,1 MB
- Gear screw.stl STL · 10,0 MB
- Gear.stl STL · 8,0 MB
- Outrigger bolt - horizontal version.stl STL · 5,2 MB
- Outrigger bolt.stl STL · 7,3 MB
- Outrigger.stl STL · 1,9 MB
- Plate.stl STL · 9,7 MB
- Spinning center.stl STL · 4,7 MB
- spinning wheel 100mm.stl STL · 13,0 MB
- spinning wheel 110mm.stl STL · 13,0 MB
- spinning wheel 120mm.stl STL · 13,0 MB
- spinning wheel 140mm.stl STL · 13,0 MB
- Spinning wheel screw.stl STL · 3,8 MB
- Weight.stl STL · 1011 KB
- wheel spacer.stl STL · 113 KB
- Yarn guide.stl STL · 12,2 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 6,171
- Publicado
Sobre este modelo
Summary This is a 100% printable yarn winder designed to turn loose yarn or threads into clean, compact balls — easily, quickly, and reliably. Key Features - Fully 3D printable — no screws, bearings, rubber bands or glue required
- Open guide spiral allows easy yarn removal without cutting
- Print-in-place rotary handle for smooth, comfortable turning
- Optimized for PLA only — no TPU or PETG required
About This Version This model is based on everything I learned from my first TPU-belt version. After receiving a lot of helpful feedback, I wanted to create a winder that: - prints more easily
- uses only standard PLA
- avoids flexible belts and additional materials
- integrates all improvements from the earlier design
- The result is a simpler, stronger, and more reliable yarn winder — still fully 3D printable, now even more accessible.
Link to the previous version BOM Quantity Designation (normal process) Alternatives (troubleshooting)
1 Axis
1 Axle end
1 per clamp Clamp mount
1 per clamp Clamping screw
1 Drive screw
1 Drive wheel screw Gear screw + Drive wheel screw horizontal version
1 Drive wheel
1 per clamp Foot
1 Gear screw / Gear screw shorter head Gear screw + Drive wheel screw horizontal version
1 Gear
1 Outrigger bolt Outrigger bolt - horizontal version
1 Outrigger
1 Plate
1 Spinning center
1 Spinning wheel (either length)
1 Spinning wheel screw
1 Weight
2 Wheel spacer
1 Yarn Guide
Changelog
