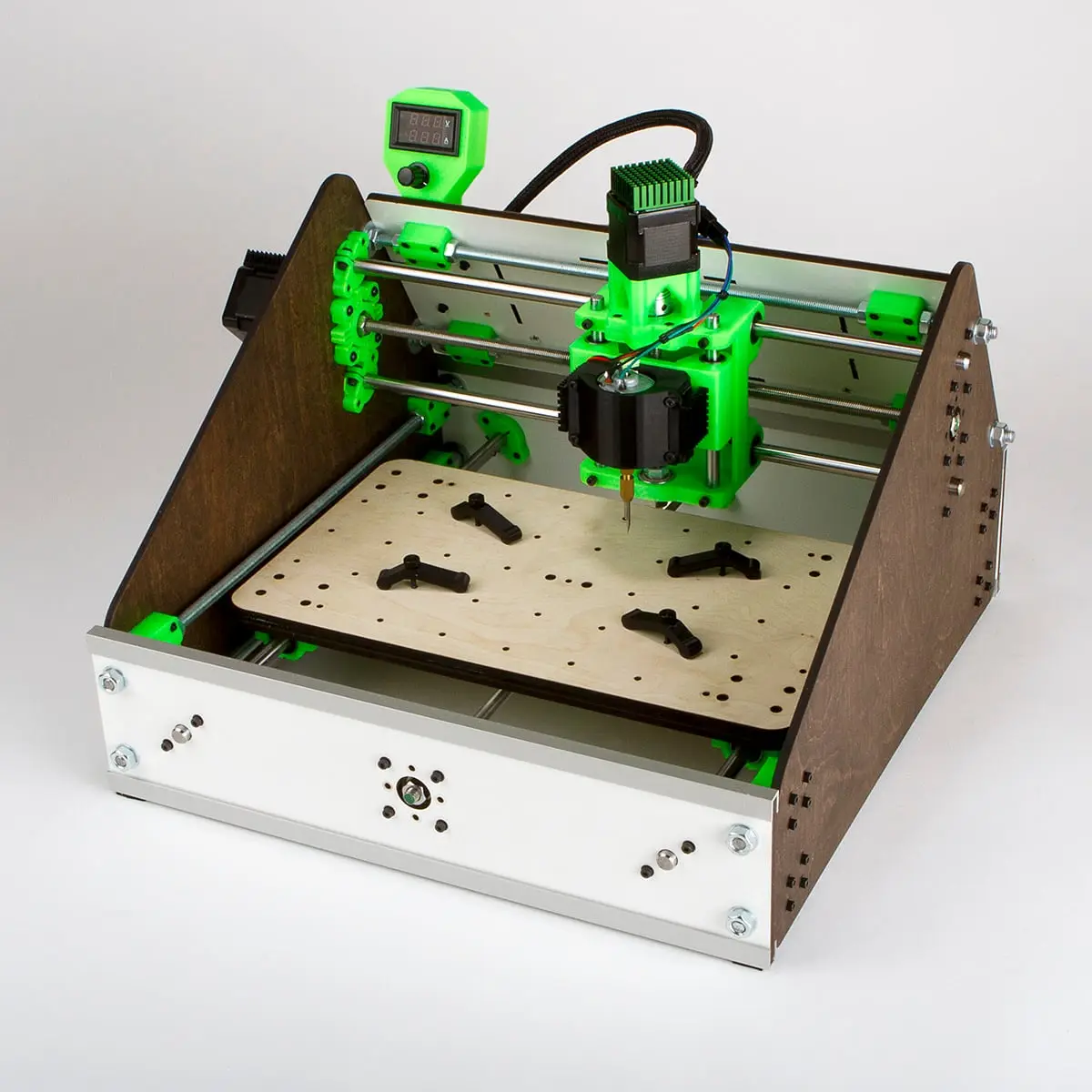

3D Printed & Laser Cut, Lil-CNC Mill ACv2

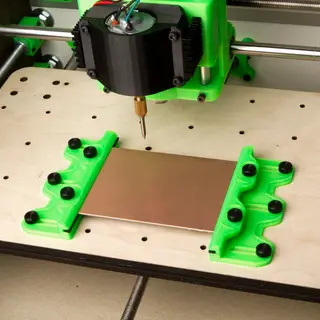

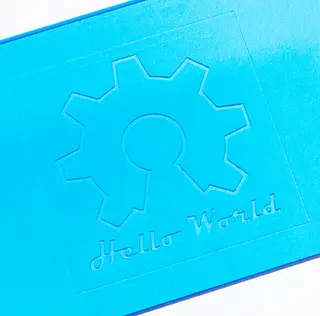

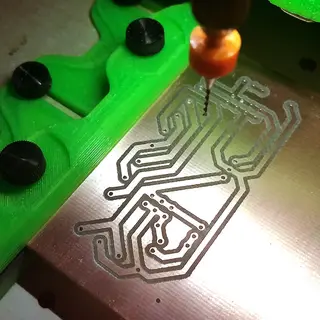

This is a great little desk top, CNC 3 axis mill re-worked from Instructables: http://www.instructables.com/id/3D-printed-CNC-mill/ Not much bigger than an All-In-One printer, this little mill can etch most materials, including etching the copper off of PCB's. It can also cut, drill, mill, most soft, and some medium density materials. While its not very fast, its amazing what it can do, especially considering how light on the pocketbook it is to build. And if you want it to do more,. upgrade the spindle motor, add some side stiffeners, and swap out the all thread for precision acme threaded rods. Not only that, but the design is fairly scale-able with out having to re-print parts, though you would have to re cut the laser cut parts, and get longer rods. Watch the mill etch this Hello World logo into acrylic: https://youtu.be/zjgG0tTBYeQ The square border around the Hello World Open Hardware logo I designed is 40x40mm, making it a great little first etch image for X, & Y movement calibration. The text, at its tallest ~4mm tall. The cutting bit used was a 25deg, 0.3mm flat tip engraving bit. This re-work is 100% backwards compatible with the original laser cut frame provided on the instructable, though a few of the small M3 hardware bits have changed in count & length. If you'd like a kit printed on the printers that the parts where designed on (~30 hours of printing) I now sell printed parts kits on eBay in various colors! Cherry Red - http://www.ebay.com/itm/252043471429 Navy Blue - http://www.ebay.com/itm/252052107810 Black - http://www.ebay.com/itm/252052101200 Neon Green - http://www.ebay.com/itm/252029615065 http://www.ebay.com/usr/myopen3d For more detail check out the instructable @ http://www.instructables.com/id/3D-printed-CNC-mill/
