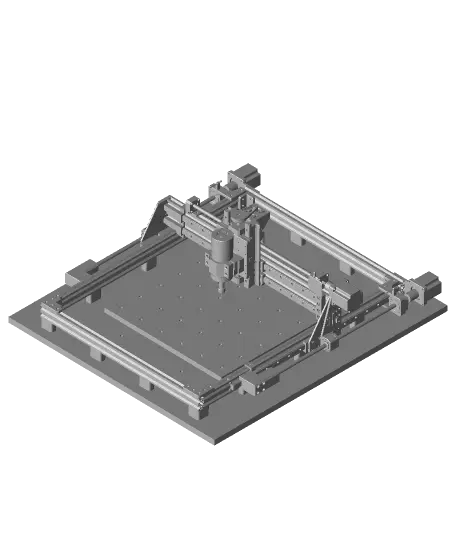

3D Printed CNC Router
por Sir_Kuhnhero en Thangs
This machine was designed with the goal of being fully 3d printed. The price for this machine (Excluding control electronics) is about 600$. The frame is made up of 2020 and 2080 extrusions. The motion is handled by MGN15H linear rails, ball screws and Nema 23 Stepper motors (Nema 17 for Z-Axis). Du
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Sir_Kuhnhero.
Archivos (28)
- CNC-Router v69.stl STL · 12,1 MB
- Base_FF_10_1_Floated_Support.stl STL · 413 KB
- Base_FK_10_Fixed_Side_1_Support.stl STL · 221 KB
- Base_FK_10_Fixed_Side_2_Support.stl STL · 222 KB
- Base_Motor_Halter_1.stl STL · 147 KB
- Corner_Back-01.stl STL · 109 KB
- Corner_Fron-01.stl STL · 149 KB
- Spacer_corner_1.stl STL · 229 KB
- Spacer_Normal_14.stl STL · 95 KB
- X_Axis_FF_10_Floated_Side_Support.stl STL · 218 KB
- X_Axis_FK_10_Fixed_Side_Support.stl STL · 261 KB
- X_Carrig_Main_Part_1.stl STL · 415 KB
- X_Carrig_Main_Part_2.stl STL · 572 KB
- Y-Axis_Main_Part_1.stl STL · 494 KB
- Y-Axis_Main_Part_2.stl STL · 385 KB
- Z_Carrig_Main_Part.stl STL · 301 KB
- Alignment_Tool_1.stl STL · 30 KB
- Alignment_Tool_2.stl STL · 25 KB
- Alignment_Tool_3.stl STL · 27 KB
- Alignment_Tool_4.stl STL · 26 KB
- mount_01 v4.stl STL
- Parts.txt TXT
- CNC-Router v77.f3z F3Z
- newSpacer v3.f3d F3D
- newSpacer v3.step STEP
- mount_00 v3.stl STL
- CNC-Router v77.step STEP
- mount_02 v5.stl STL
- Categoría
- Herramientas
- Formatos
- STL, TXT, F3Z, F3D, STEP
- Descargas
- 290
- Publicado
Sobre este modelo

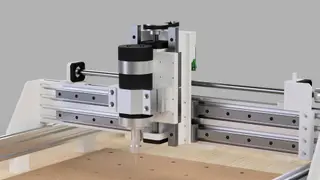

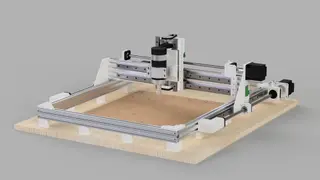

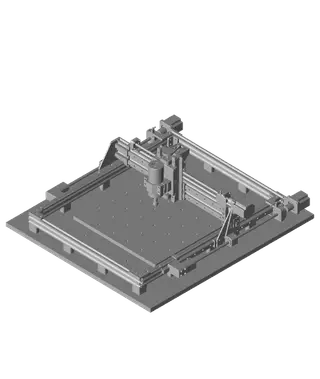

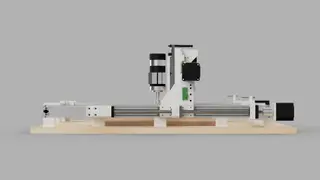

This machine was designed with the goal of being fully 3d printed. The price for this machine (Excluding control electronics) is about 600$. The frame is made up of 2020 and 2080 extrusions. The motion is handled by MGN15H linear rails, ball screws and Nema 23 Stepper motors (Nema 17 for Z-Axis). Due to this there is no play and the entire machine is very rigid and accurate.
It has a usable build volume of 360x360x75mm
If interested about the build process, I made a video about that: https://youtu.be/GlJae67H9mo There is also a video about the electronics: https://www.youtube.com/watch?v=l93nA2cq8AY First machined part: https://www.youtube.com/watch?v=HnPgMNhFqeY Testing some materials: https://www.youtube.com/watch?v=mrgjkNgXUfE
Playlist: https://www.youtube.com/watch?v=GlJae67H9mo&list=PLVfOFW5xBHStf1y7x-9UYrqYRcM5o7rV_&index=1&t=0s
You can also check out the Thingiverse page. There may be some files that I can't upload here. https://www.thingiverse.com/thing:5344348
Update (22.03.2022): I've added the parts used for the electronics Warning: mount_01 leaves mains voltage exposed. Don't use it if you don't think of fixing it.

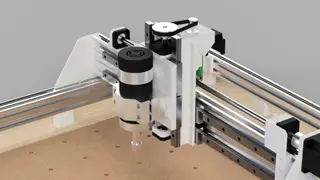

Update (27.07.2022): After a bit of machining I had to make a change to the machine. I updated the Z_Carrig_Main_Part model to use a better mounting solution for the 500w spindle. I also updated the Spacer_Normal_14 model (no name change). I'm not making it part of the main file because I haven't and won't test it. However, it should be a much better solution since it eliminates the need to drill precise holes in the baseplate. I would recomend using it instead of Spacer_Normal_14 and Spacer_corner_1.
Check out my latest video where I not only show these changes but also how I machined something from multiple sides. https://www.youtube.com/watch?v=QsKsJzvEbPQ
