3D Enclosure of Arduino UNO Oscilloscope
por Circuit Digest en Thingiverse

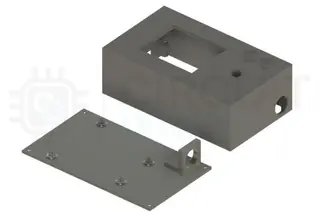

A compact 3D-printed enclosure was designed to house the electronic components securely in a single unit. The design includes suitable openings for the display, controls, power connections, and input connectors, ensuring easy access and a neat, organized assembly. The TFT display and rotary encoder.
Licencia
Uso comercial permitidoPuedes usarlo, modificarlo y venderlo; si distribuyes versiones modificadas deben ir con la misma licencia y sus fuentes.
Al descargar aceptas respetar la licencia y dar crédito a Circuit Digest.
Archivos (1)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 1
- Publicado
Sobre este modelo

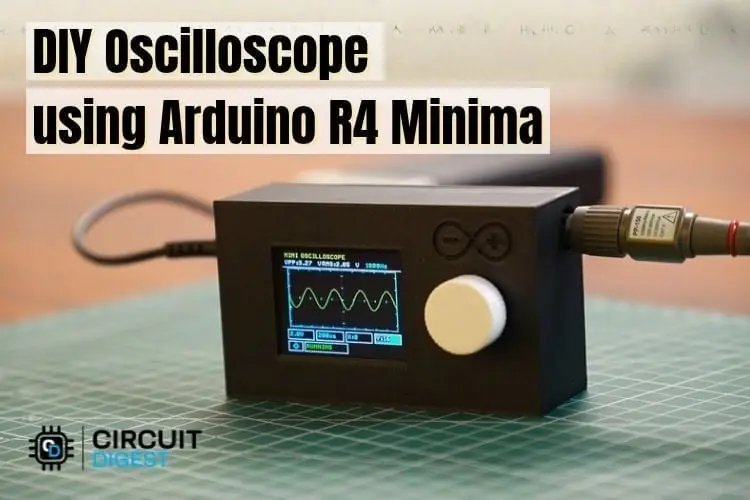

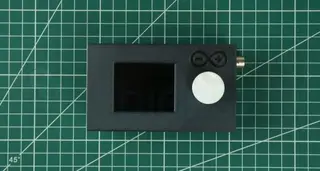

A compact 3D-printed enclosure was designed to house the electronic components securely in a single unit. The design includes suitable openings for the display, controls, power connections, and input connectors, ensuring easy access and a neat, organized assembly. The TFT display and rotary encoder are mounted on the front, while the Arduino and the rest of the circuit are housed inside. We also added the BNC connector and power input connections to complete the build.
Descripción original del autor, publicada en Thingiverse.
