.375" Fuel Line Tubing Clamps - Double Fuel, Air & Oil Lines
Building a Custom Car or Race Car? Restoring a Classic Car? These clamps are to help organize your Fuel, Oil, Air Ride, etc Lines / Tubing. This design is for two 3/8" (.375" / 9.525mm) side by side. Designed to be used to clamp tubing to a frame rail or body panels, or just for attaching two tubes
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Alan M.
Archivos (5)

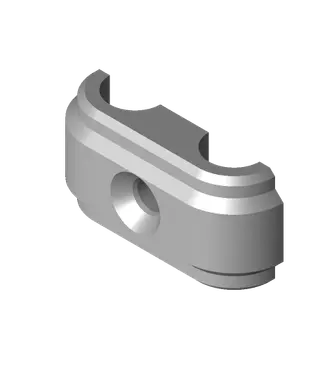

- Double .375 Bottom V3.stl STL · 145 KB

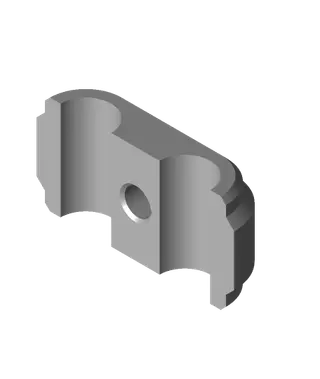

- Double .375 Top V3.stl STL · 152 KB

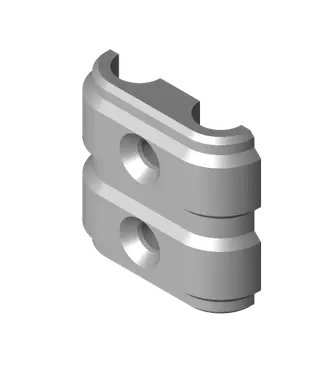

- Double Double .375 Bottom V3.stl STL · 204 KB

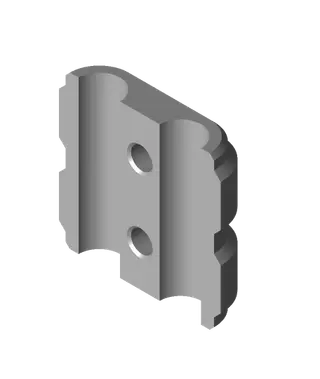

- Double Double .375 Top V3.stl STL · 230 KB
- Fuel Line Double .375 V3.step STEP · 286 KB
- Categoría
- Herramientas
- Formatos
- STL, STEP
- Descargas
- 298
- Publicado
Sobre este modelo

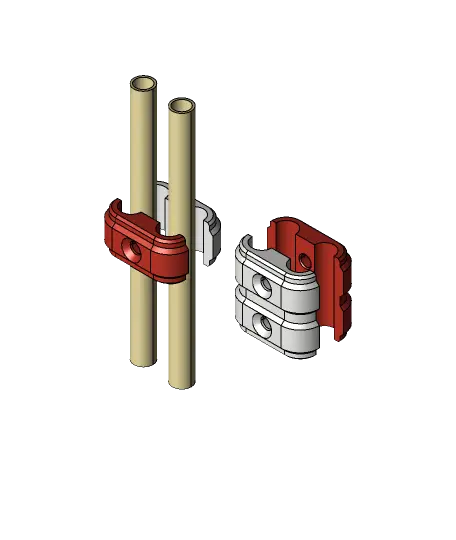

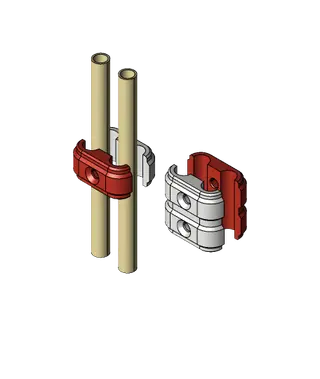

Building a Custom Car or Race Car? Restoring a Classic Car? These clamps are to help organize your Fuel, Oil, Air Ride, etc Lines / Tubing. This design is for two 3/8" (.375" / 9.525mm) side by side. Designed to be used to clamp tubing to a frame rail or body panels, or just for attaching two tubes together in open space.
Check out this video to see them in action: https://youtu.be/k6x5wKuUE7E
Uses #10-32 screws and nuts to attach the two halves together. If attaching to a Frame Rail or Body Panel the nut is unnecessary.
Recommend PETG, ABS, or ASA filament (or other suitable strength / temperature handling materials.) PLA is NOT Suitable for use in Automotive Applications.
WARNING: Due to variation in the printing process we are Not Resposible for improper use. FOR OFF ROAD USE ONLY. Use at your own risk.
--------------------------------------------------------------- - Necessary Parts (Affiliate Links): - #10-32 Counter Sunk Screws: https://amzn.to/37Sw3eI - #10-32 Nuts: https://amzn.to/3ANJ3Pa
---------------------------------------------------------------- - INCLUDED FILES: - CAD STEP File to learn how I designed these. - Single Width 2 Tube Clamp Top - Single Width 2 Tube Clamp Bottom - Double Width 2 Tube Clamp Top - Double Width 2 Tube Clamp Bottom
---------------------------------------------------------------- - PRINT PARAMETERS: - No Supports Required (Print standing on the side edges.) - 4 Perimeters MINIMUM - 40%+ Infill (I used Rectilinear)
Mine were printed in California Filament "Black" PETG.
---------------------------------------------------------------
Want to Support what I do? Check out my social medias please!
Link Tree: http://www.HotRodHippie.com/links
-------------------------------------------------------------- All of my Designs are covered by a Creative Commons Non-Commercial License. Sale of prints using my designs are the sole right of myself, the designer, and those I license to do so. Please understand every design is hours of work and multiple prototype prints to ensure quality. Unauthorized sales will result in new designs not being made public.
WARNING: Due to variation in the printing process we are Not Resposible for improper use. FOR OFF ROAD USE ONLY. Use at your own risk.
PLEASE Credit any and all Remixes of my designs: MandicReally
Descripción original del autor, publicada en Thangs.
