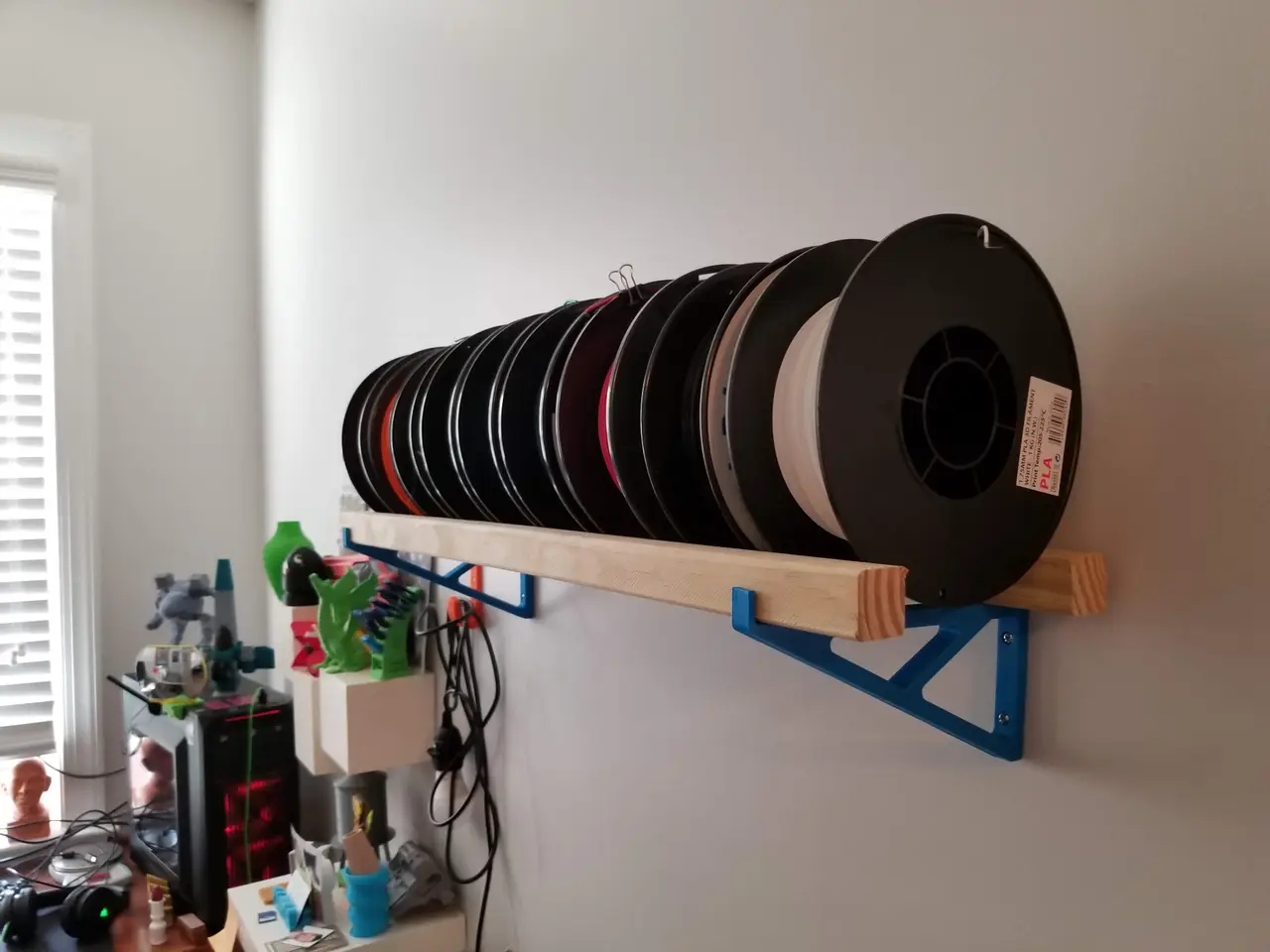

2x2 Filament Shelf Bracket
por Joel Bonasera en MyMiniFactory
2020 Update: Added a version with a through hole on the lower mounting point for easier access to the screw while hanging. Either way, I use a regular screw driver to put the screws in the wall after punching the holes with a power drill.
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMyMiniFactory Exclusive - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Joel Bonasera.
Archivos (2)
- 2X2 Shelf With Through Hole.stl STL
- 2X2 Shelf.stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 1,853
- Publicado
Sobre este modelo
2020 Update: Added a version with a through hole on the lower mounting point for easier access to the screw while hanging. Either way, I use a regular screw driver to put the screws in the wall after punching the holes with a power drill.

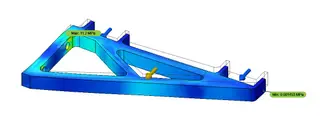

I took a bit (a lot) of inspiration from Joel Telling's spool mounting bracket, but I had a 2x2 lying around instead of a 1x2. Also, I used this project as an opportunity to mess around with the simulation tools in Fusion 360. Results pictured with 98N (10kg) of load assuming solid PETG. Not bad! I actually printed it in PLA, but the two brackets share the load so it should be well within the safety zone.
Be sure to use a heavy duty mounting screw on the upper screw hole (like a toggle bolt) if you're mounting to drywall. Overall, everything looks good and shows no sign of failure under load.
Descripción original del autor, publicada en MyMiniFactory.
