2020 Extrusion Cutting (sanding) Jig – Remix for square-edge profiles
por AL_3D en Printables
Remix of k1-801’s cutting jig, adapted for 2020 extrusions with sharp, non-rounded outer corners.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a AL_3D.
Archivos (1)
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 28
- Publicado
Sobre este modelo

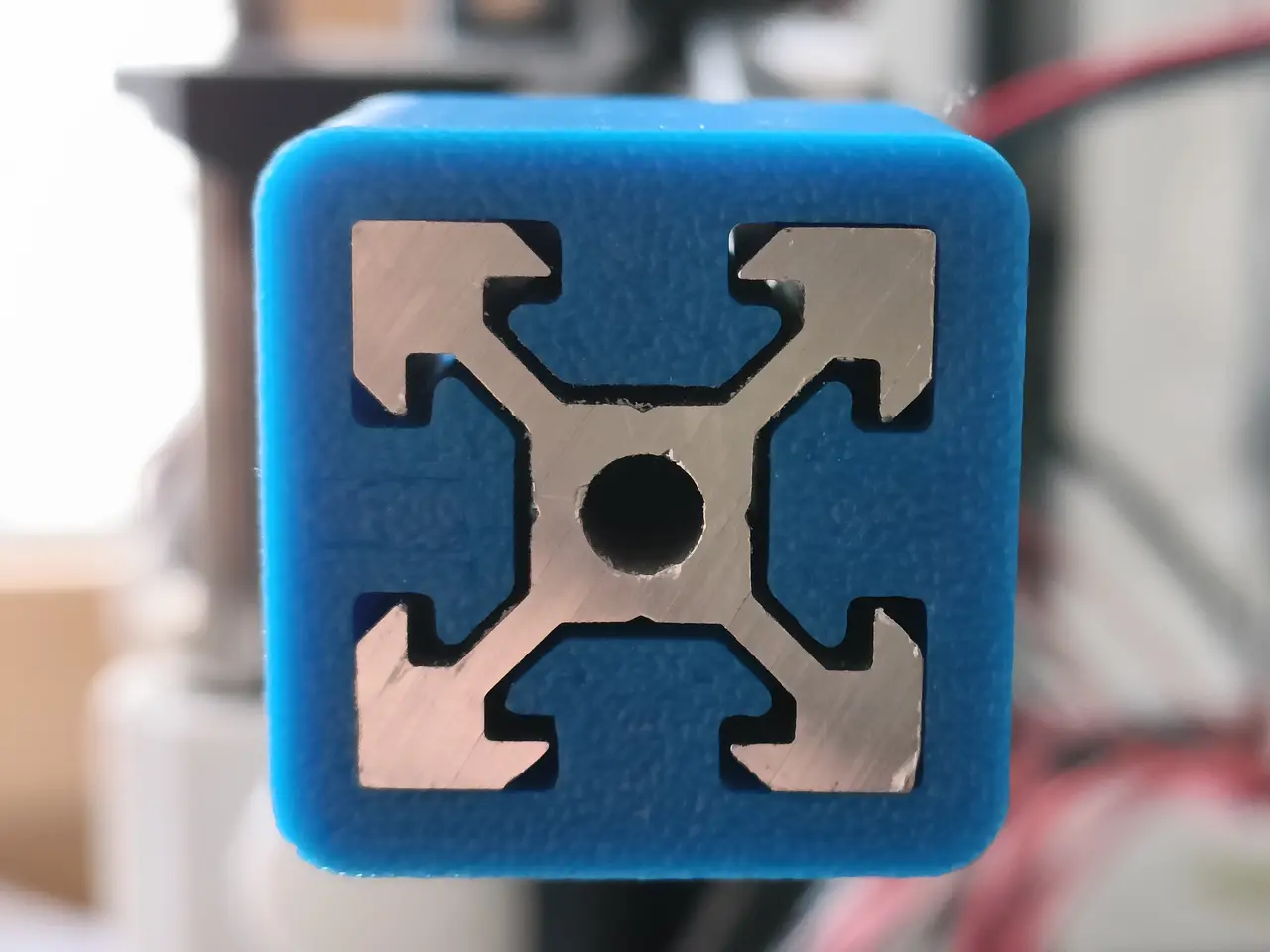

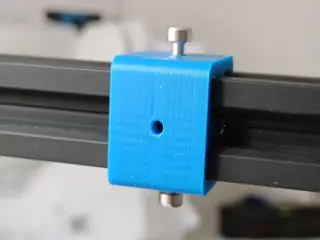

This is a remix of the excellent 2020 Extrusion Cutting (sanding) Jig by k1-801. My 2020 profiles have sharp, square outer edges instead of the usual rounded corners, so the original jig didn’t fit. I modified the profile cutout so these profiles slide in properly. The rest of the design is unchanged and works exactly like the original: - Slide the jig onto the extrusion and fix it with M3 screws through the side holes (2 on neighbouring sides are enough).
- Use it as a reference plane to sand or grind the cut end flat and perpendicular.
All credit for the original design goes to k1-801. Please go check out and like the original!
