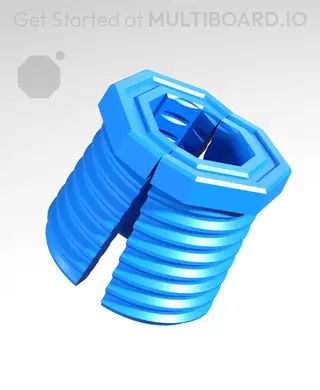

20 mm Big Thread, Push-fit Flat Head, Folded-Bolt

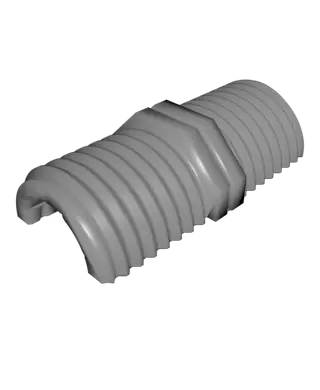

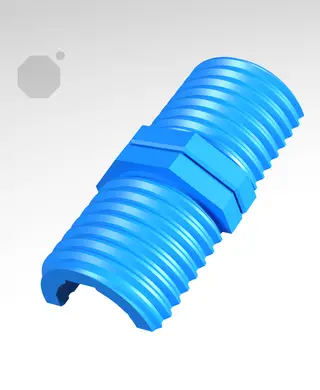

“Folded Bolts” are the strongest type of 3D printed bolt because of their print orientation, and they have better grip strength than a T-Bolt (https://link.Multiboard.io/t-bolts).

This bolt has a “big thread” that can screw directly into the Multiboard tiles.

The 20mm thread length is designed for use when your Multiboard is mounted away from a surface, allowing you to screw the thread in deeper.

It has a “flat” head to facilitate clearance in case the bolt head is in the way (like a corner in a shelf bracket).

It also has a “push-fit head” to insert push-fit accessories and screw in bolts/rods that have a mid thread.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

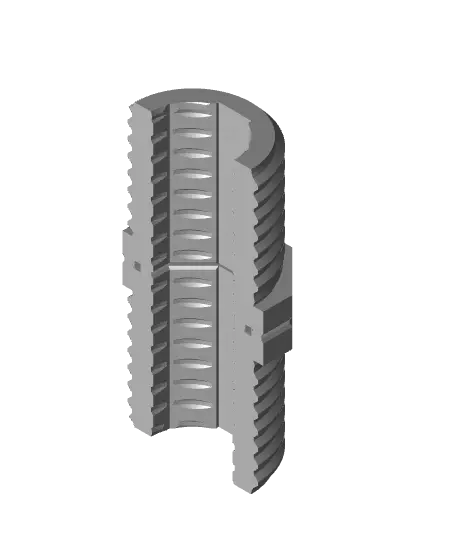

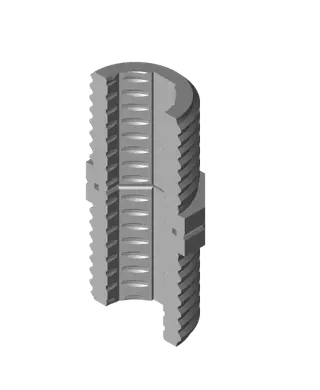

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

—

This object is part of Multiboard, a FREE "all in one" organization system with 900+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
