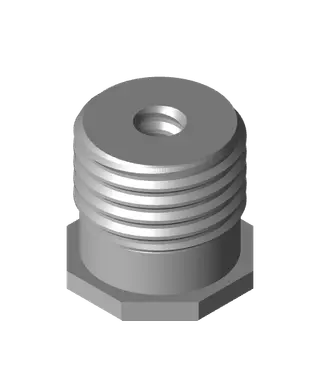

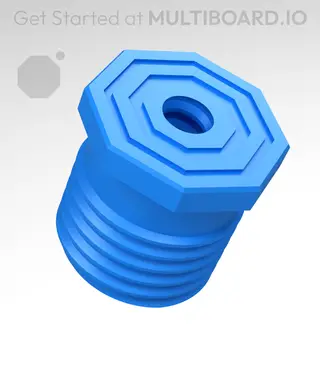

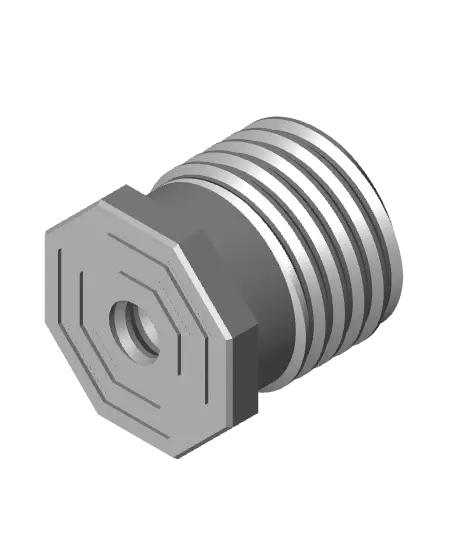

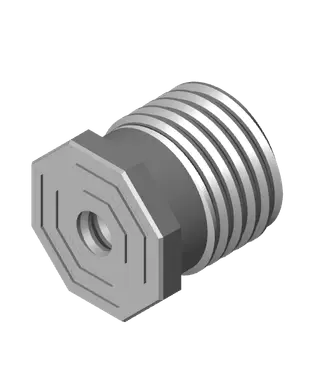

20 mm Big Thread, Flat Head, Small Thread Hole, Shank Bolt
por Jonathan K en Thangs
This bolt has a “big thread” that can screw directly into the Multiboard tiles.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- 20 mm Big Thread, Flat Head, Small Thread Hole, Shank Bolt.stl STL · 1,0 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 1,039
- Publicado
Sobre este modelo
This bolt has a “big thread” that can screw directly into the Multiboard tiles.
The 20mm thread length is designed for use when your Multiboard is mounted away from a surface, allowing you to screw the thread in deeper.
The shaft has a 6.5mm shank, allowing you to connect two Multiboard tiles together and form a press connection between them, without the bolt causing any unintended rotation.
It has a “flat” head to facilitate clearance in case the bolt head is in the way (like a corner in a shelf bracket).
It also has a “small thread hole” to screw in bolts/rods that have a small thread.
Descripción original del autor, publicada en Thangs.
