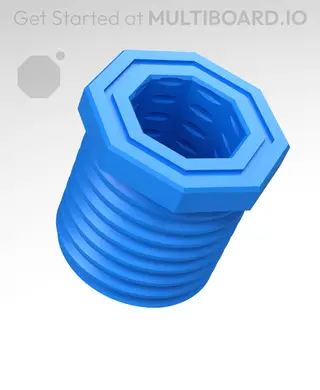

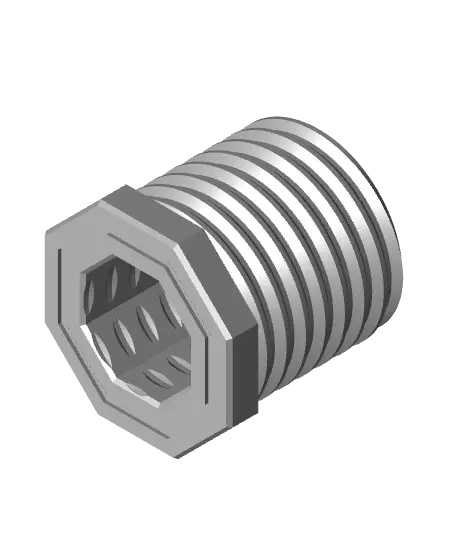

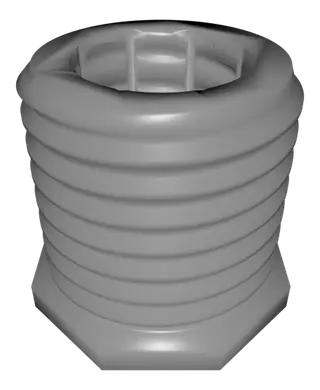

20 mm Big Thread, Flat Head, Push-Fit Hole, Bolt
por Jonathan K en Thangs
This bolt has a “big thread” that can screw directly into the Multiboard tiles.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- 20 mm Big Thread, Flat Head, Push-Fit Hole, Bolt.stl STL · 1,1 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 1,616
- Publicado
Sobre este modelo
This bolt has a “big thread” that can screw directly into the Multiboard tiles.
The 20mm thread length is designed for use when your Multiboard is mounted away from a surface, allowing you to screw the thread in deeper.
It has a “flat” head to facilitate clearance in case the bolt head is in the way (like a corner in a shelf bracket).
It also has a “push-fit hole” to insert push-fit accessories and screw in bolts/rods that have a mid thread.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2mm. It doesn't need printing supports. Use the default 15% infill. Your printer will need to be able to bridge gaps of up to 30mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
