Sobre este modelo

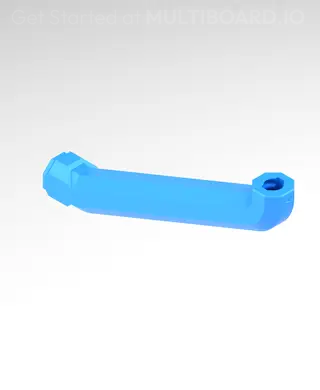

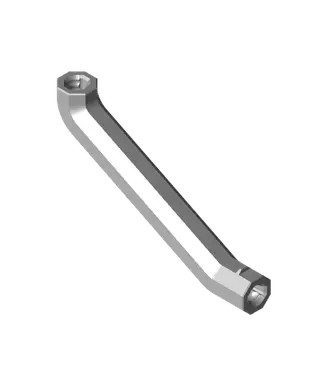

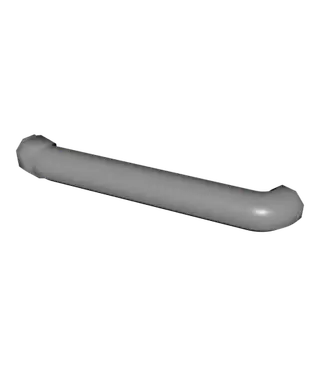

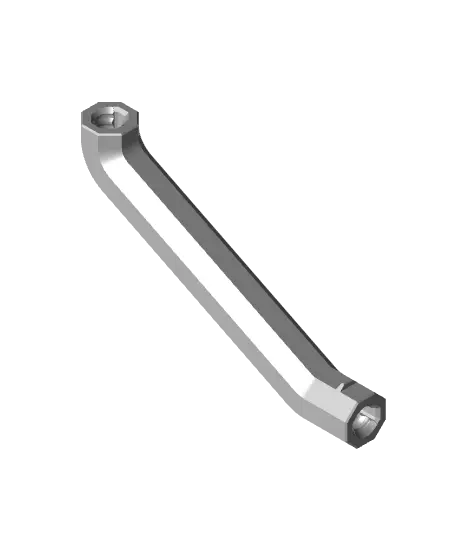

This Bracket only connects to Bolt-Locked Shelves (https://link.Multiboard.io/bolt-locked-shelves). Screw in a Small Thread to Small Clip (https://thangs.com/designer/Multiboard/3d-model/Small%20Thread%20to%20Small%20Clip-1365259?source=Recent) on the top side of the bracket. The bottom side attaches to a Regular Snap (https://than.gs/m/1311031) and is secured using a Locking Bolt (https://than.gs/m/1310062).
This Bracket is 2 cells long.
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
For more information about printer settings, click here (https://multiboard.io/knowledge-hub/printing-guidelines).
---
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
