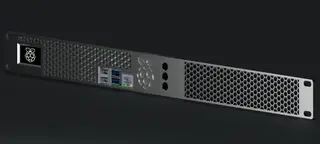

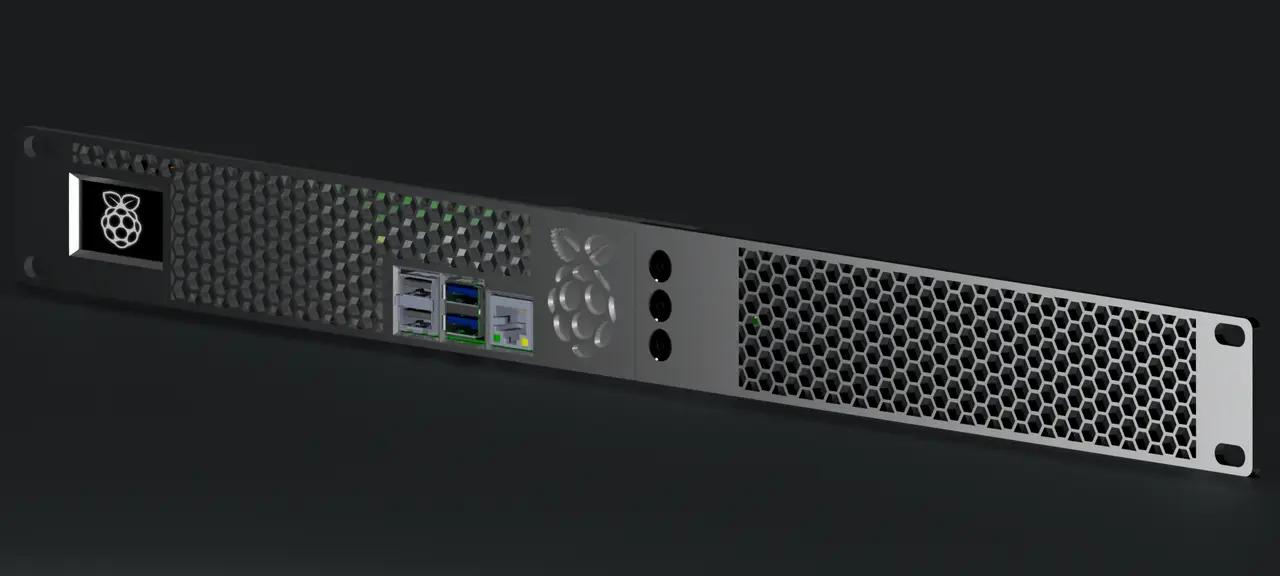

19" Raspberry Pi (3&4) Rackmount with 1.3" OLED Screen (Perfect for PiHole)
por Freddy en Printables

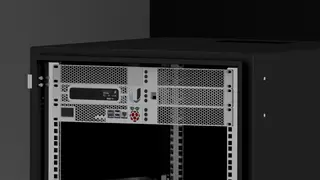

Designed this for my upcoming serverrack! You need to print with supports.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Freddy.
Archivos (5)
- Categoría
- Tecnología
- Formatos
- STL, STP, PDF
- Descargas
- 1,443
- Publicado
Sobre este modelo

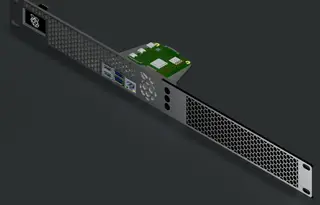

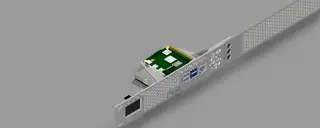

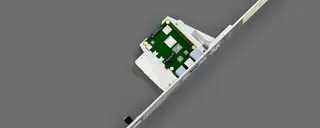

I designed a 19 inch rackmount for my PiHole with the opportunity to use an 1.3 inch I2C-Screen. You need to print it with supports. If you want a screen and use it with PiHole, Id recommend using my script and instructions to get it to work: https://github.com/freddy2312/SH1106-PiHole-Statistics Youll need 8 M2 Screws for the Pi and the screen and 3 m4x10 screws + nut for clamping together the 2 parts. I used this screen: https://www.ebay.de/itm/203243257235?mkcid=16&mkevt=1&mkrid=707-127634-2357-0&ssspo=r04FY9mKR3G&sssrc=2349624&ssuid=GJ3DoDBeSVC&var=503597008223&widget_ver=artemis&media=COPY
Edit: A Reddit user suggested, that I should add another Iteration with a SSD-space, so: here you go :)
