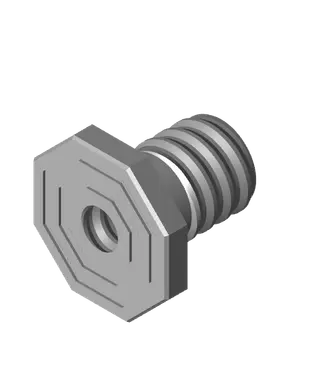

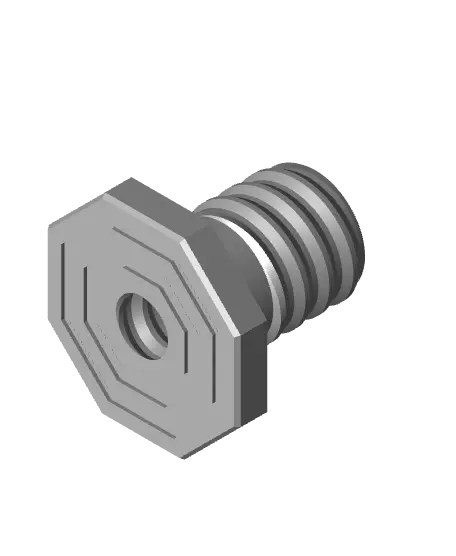

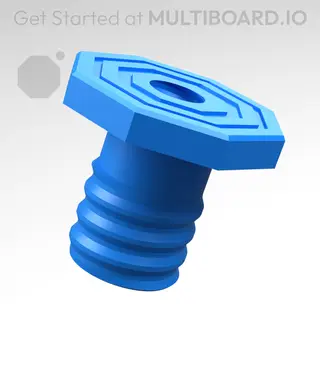

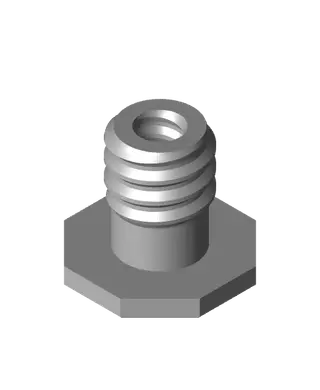

18 mm Mid Thread, Flat Head, Small Thread Hole, Shank Bolt

This bolt has a “mid thread” that can screw into push-fit holes (like into the snaps, or into bolts/rods that have a push-fit hole).

The 18mm thread length enables you to securely join two Multiboard tiles together (including the snaps) without the bolt protruding through the other side.

The shaft has a 6.5mm shank, allowing you to connect two Multiboard tiles together and form a press connection between them, without the bolt causing any unintended rotation.

It has a “flat” head to facilitate clearance in case the bolt head is in the way (like a corner in a shelf bracket).

It also has a “small thread hole” to screw in bolts/rods that have a small thread.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

—

This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
