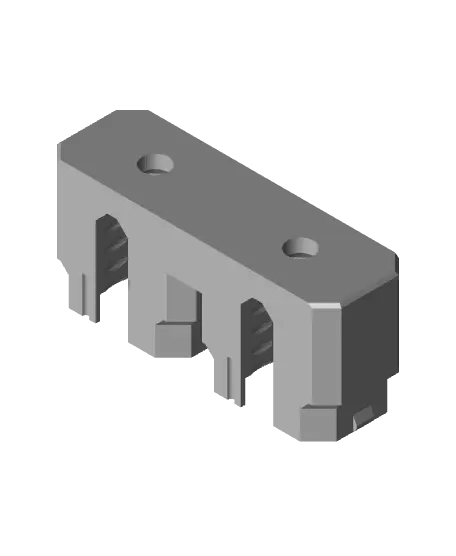

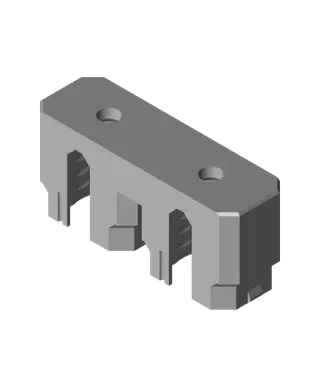

15 mm - Dual Offset Snaps (DS Part A)

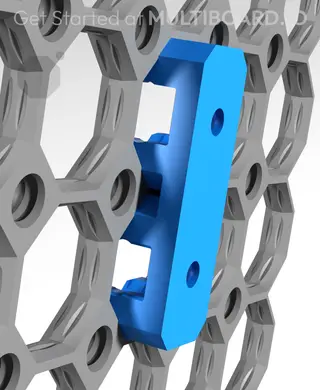

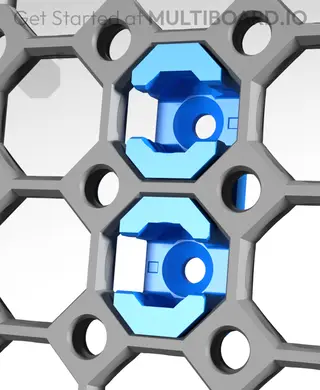

The “15 mm Dual Offset Snap” creates an 15 mm gap between your Multiboard and a surface when using the “off-a-surface” mounting system. This piece also connects two tiles together.

You can secure it to a surface using a screw through the mounting hole.

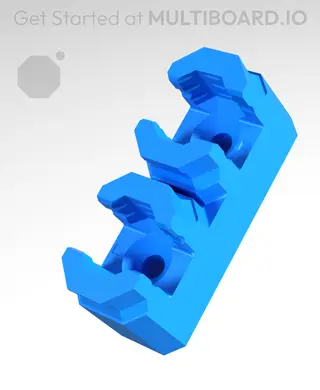

This is a “Double Sided Part A” piece, so it can be secured into place using the Dual Snap Connector - DS Part B. It can also be secured using 10 mm Mid Thread Bolts.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

UPDATE: All of the Double-Sided Snaps (Part A’s and Part B’s) have been updated and are NOT compatible with the old versions. Click here (https://www.youtube.com/watch?v=D6QzwYYZiBE) to discover what has changed.

You can still access the old parts in the Multiboard Legacy Parts listing.

—
