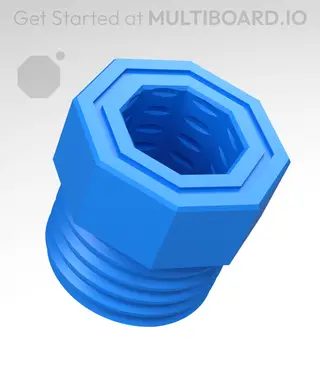

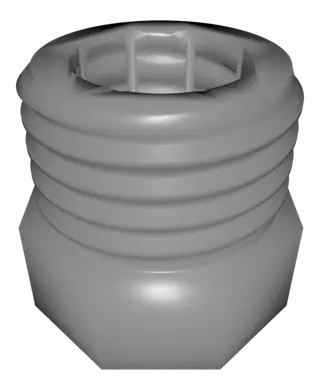

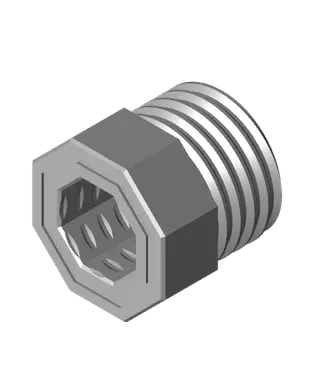

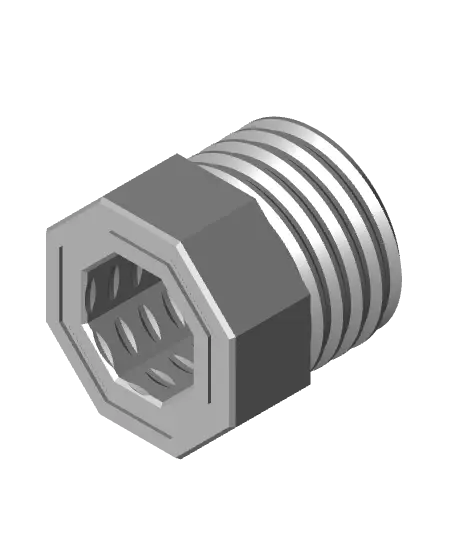

13 mm Big Thread, Push-Fit Hole, Bolt
por Jonathan K en Thangs
This bolt has a “big thread” that can screw directly into the Multiboard tiles.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- 13 mm Big Thread, Push-Fit Hole, Bolt.stl STL · 928 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 3,244
- Publicado
Sobre este modelo
This bolt has a “big thread” that can screw directly into the Multiboard tiles.
The 13mm thread length enables you to securely join two Multiboard tiles together without the bolt protruding through the other side.
It also has a “push-fit hole” to insert push-fit accessories and screw in bolts/rods that have a mid thread.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2mm. It doesn't need printing supports. Use the default 15% infill. Your printer will need to be able to bridge gaps of up to 30mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
Descripción original del autor, publicada en Thangs.
