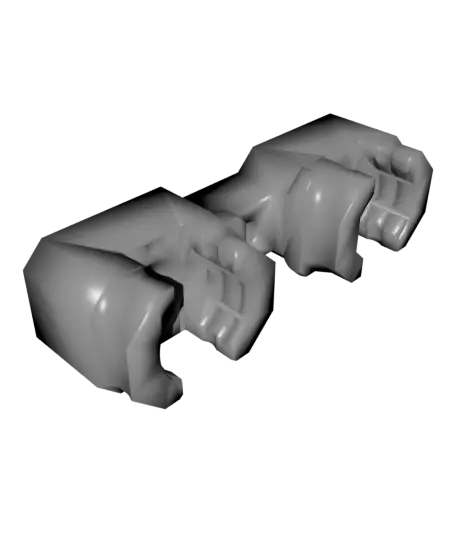

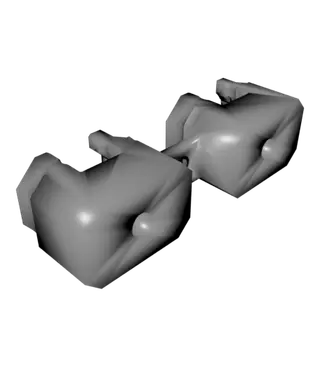

12.5 mm - Quad Offset Snaps (DS Part A)
por Jonathan K en Thangs
"12.5 mm Offset Snaps" screw onto a surface and attaches to a tile, creating a 12.5 mm gap. This part also connects four tiles together.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (2)
- 12.5 mm - Quad Offset Snaps (DS Part A) - Part 1.stl STL · 3,5 MB
- 12.5 mm - Quad Offset Snaps (DS Part A) - Part 2.stl STL · 3,5 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 6,031
- Publicado
Sobre este modelo

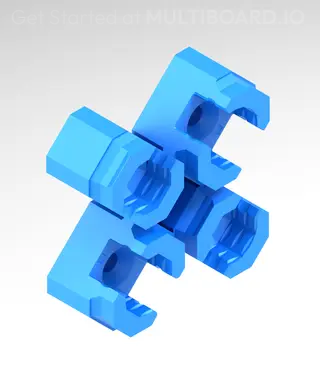

"12.5 mm Offset Snaps" screw onto a surface and attaches to a tile, creating a 12.5 mm gap. This part also connects four tiles together.
This is a "Part A" piece, and attaches to four Part B Snaps (https://than.gs/m/1323061).
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
---
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts to create the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
Descripción original del autor, publicada en Thangs.
