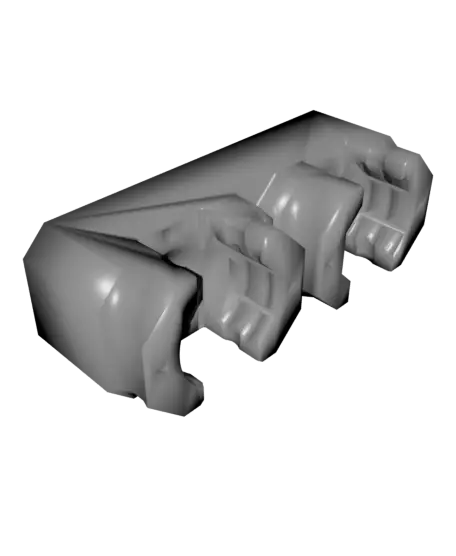

12.5 mm - Dual Offset Snaps (DS Part A)
por Jonathan K en Thangs
"12.5 mm Offset Snaps" screw onto a surface and attaches to a tile, creating a 12.5 mm gap. This part also connects two tiles together and usually goes on the outer edges of your board.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- 12.5 mm - Dual Offset Snaps (DS Part A).stl STL · 5,0 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 5,079
- Publicado
Sobre este modelo
"12.5 mm Offset Snaps" screw onto a surface and attaches to a tile, creating a 12.5 mm gap. This part also connects two tiles together and usually goes on the outer edges of your board.
This is a "Part A" piece, and attaches to two Part B Snaps (https://than.gs/m/1323061).
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
Descripción original del autor, publicada en Thangs.
