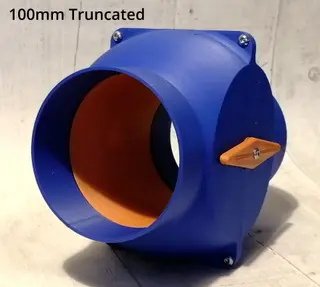

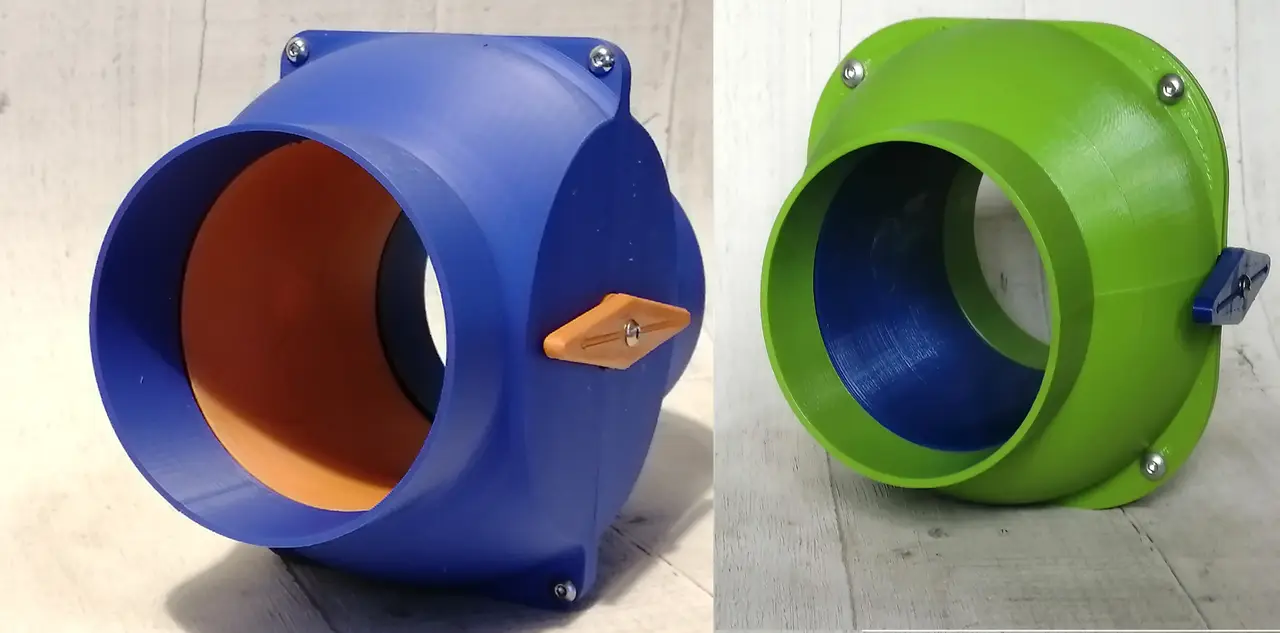

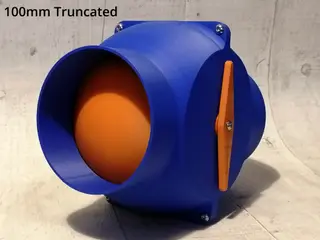

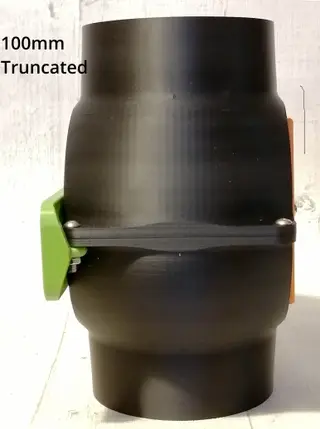

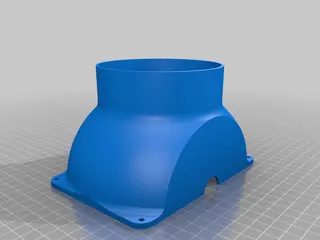

100mm / 4" Truncated & Full-Size Ball Valve Type Non-Clog Blast Gate for Workshop Dust Extraction Network

**************************************************************************************************

See this YouTube video by Nils Rasmusson (https://www.thingiverse.com/the3dprintingzone/designs) for a performance comparison of this blast gate with other commercially available designs https://www.youtube.com/watch?v=epJ929kZzc4&t=8s&ab_channel=LRN2DIY

************************************************************************************************** Update 18May26 I've amalgamated the files for the Truncated 100mm and Full-Size Ball Valve Blast Gates into this one posting, in order to make comparison, choice, & file maintenance simpler. Also... I've redrawn the lever bearing and the case to include alignment marks that makes it clear when the ball valve would be aligned with the direction of flow (several people had commented that they were confused by which way to orientate the lever bearing - hopefully, this makes that clearer). To this end, there is an arrow on the updated Rotator and an arrow on the updated Lever Bearing that should point at each other. The original files, without alignment marks, are still available in the list. All the print files exist as both STEP and STL files - you only need to download one file type. At the current time, Orcaslicer is likely to give a Warning that the Rotator has floating regions. It hasn't, and will print OK if you ignore the warning! Update 09Jun24 I've had several requests for the drawings for this design, so here's the link: https://cad.onshape.com/documents/5425e358a4e266ea950b034e/w/fb495421e309359b374e4475/e/4d9c2eb1d22e551f1167f7ed?renderMode=0&uiState=6294a1822d6a8c78dfc0f938 Update 16Apr22 The lever can be hard to grip to open and close the blast gate, so I've designed a pair of alternatives that have lugs to help with their operation. One consequence is that they need to be printed with support under the square drive recess. the arrow-lugged lever retains the concept of the arrow to indicate air flow. My 100mm ball valve type blast gate (Print 137794) works well, but is big! This redesign aims to keep the functionality but make it a little more compact. This still suits 100mm flexible tubing. In addition to printing filament you'll need 4 short M4 set screws to fasten the two halves of the case together, and another M4 x 8mm screw, with an M4 hex nut, to fasten the lever on its bearing (I used M4 x 8mm socket head button screws). If you want to make use of the bracket to mount the blast gate to a wall, you need to replace two of the M4 x 8mm screws with M4 x 18mm (or longer) and a pair of M4 hex nuts. The holes in the case / housing may need to be eased with a suitable drill bit - 4mm on one half of the case and 3.3mm (for tapping to M4) on the other. You need to print 2 cases, 1 rotator, 1 bearing, 1 lever bearing and 1 lever for each gate, and the bracket if you want to use it. It's useful to use a different colour for the lever from that used to print the case so that the position of the ball (open or closed) can be seen easily. Update 05 Feb 21 Please see the comments with a Thingiverse post from George (zhushengliang) with regard to the .step files. (thing:4705215/comments) Print Settings Printer Brand: Anycubic Printer: Kossel Rafts: No Supports: No Resolution: 0.2 Infill: 10% Filament: Ooznest, {Kodak}, [Ooznest] PLA Pro [Bracket = PETG] Royal Blue, Midnight Black, [Apple Green], {Orange}. Lately, I've printed in ASA with a 40°C chamber and 105°C hotbed

Notes: Print the rotator with one tube opening facing onto the build plate, such that the triangular recesses for the bearings are apex up, as in the image. The contact area with the build plate is very small, so I recommend a brim to keep the rotator on the build plate (I used a 6mm brim). This then has to be cleaned off and the roughness rubbed away with a fine abrasive paper otherwise the rotator will catch on the case. Post-Printing ============= Clean off the brim from the rotator and rub down the roughness with a fine abrasive paper otherwise the rotator will catch on the case. The triangular base of each bearing will need to be glued in place to guarantee that it won't slip out of its mounting recess. I used a high quality, rapid set, two part epoxy adhesive*. Make sure that the lever will mount on its square drive in the orientation that you want before the adhesive sets (you can use any orientation you like, but I fit it aligned with the air flow direction to clearly indicate when the blast gate is open or closed)! *When I print in ASA, I use acetone to "weld" the parts together. There's a recess for an M4 hex nut in the back of the lever bearing. An M4 x 8mm screw will fix into this to secure the lever in place.
