10 inch server rack
por McBig en Printables
Full printed 10 inch server rack
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a McBig.
Archivos (44)
- rack_hook.stl STL · 27 KB
- rack_rail_join.stl STL · 13 KB
- rack_shelf.stl STL · 402 KB
- rack_shelf_panel.stl STL · 402 KB
- rack_shelf_up.stl STL · 350 KB
- rack_shelf_panel_up.stl STL · 350 KB
- rack_shelf_down.stl STL · 350 KB
- rack_shelf_panel_down.stl STL · 350 KB
- rack_shelf_support.stl STL · 406 KB
- rack_shelf_panel_support.stl STL · 406 KB
- rack_shelf_up_support.stl STL · 354 KB
- rack_shelf_panel_down_support.stl STL · 354 KB
- rack_shelf_down_support.stl STL · 354 KB
- rack_shelf_panel_up_support.stl STL · 354 KB
- rack_shelf_strong_support.stl STL · 406 KB
- rack_panel_honeycomb.stl STL · 94 KB
- rack_panel.stl STL · 29 KB
- rack_panel_inbus_holder.stl STL · 89 KB
- rack_legs_line.stl STL · 22 KB
- rack_head_line.stl STL · 22 KB
- rack_legs_line_2x.stl STL · 40 KB
- rack_head_line_2x.stl STL · 40 KB
- rack_leg_2x.stl STL · 16 KB
- rack_leg.stl STL · 9 KB
- rack_rail_1U.stl STL · 16 KB
- rack_rail_2U.stl STL · 35 KB
- rack_rail_3U.stl STL · 54 KB
- rack_rail_4U.stl STL · 73 KB
- rack_rail_5U.stl STL · 91 KB
- rack_rail_6U.stl STL · 110 KB
- rack_rail_7U.stl STL · 129 KB
- rack_rail_8U.stl STL · 148 KB
- rack_rail_9U.stl STL · 166 KB
- rack_rail_10U.stl STL · 185 KB
- rack_rail_2x1U.stl STL · 31 KB
- rack_rail_2x2U.stl STL · 69 KB
- rack_rail_2x3U.stl STL · 106 KB
- rack_rail_2x4U.stl STL · 144 KB
- rack_rail_2x5U.stl STL · 181 KB
- rack_rail_2x6U.stl STL · 219 KB
- rack_rail_2x7U.stl STL · 256 KB
- rack_rail_2x8U.stl STL · 294 KB
- rack_rail_2x9U.stl STL · 331 KB
- rack_rail_2x10U.stl STL · 369 KB
- Categoría
- Organización
- Formatos
- STL
- Descargas
- 6,012
- Publicado
Sobre este modelo

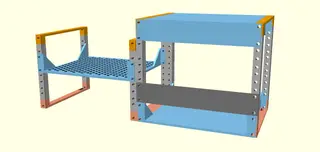

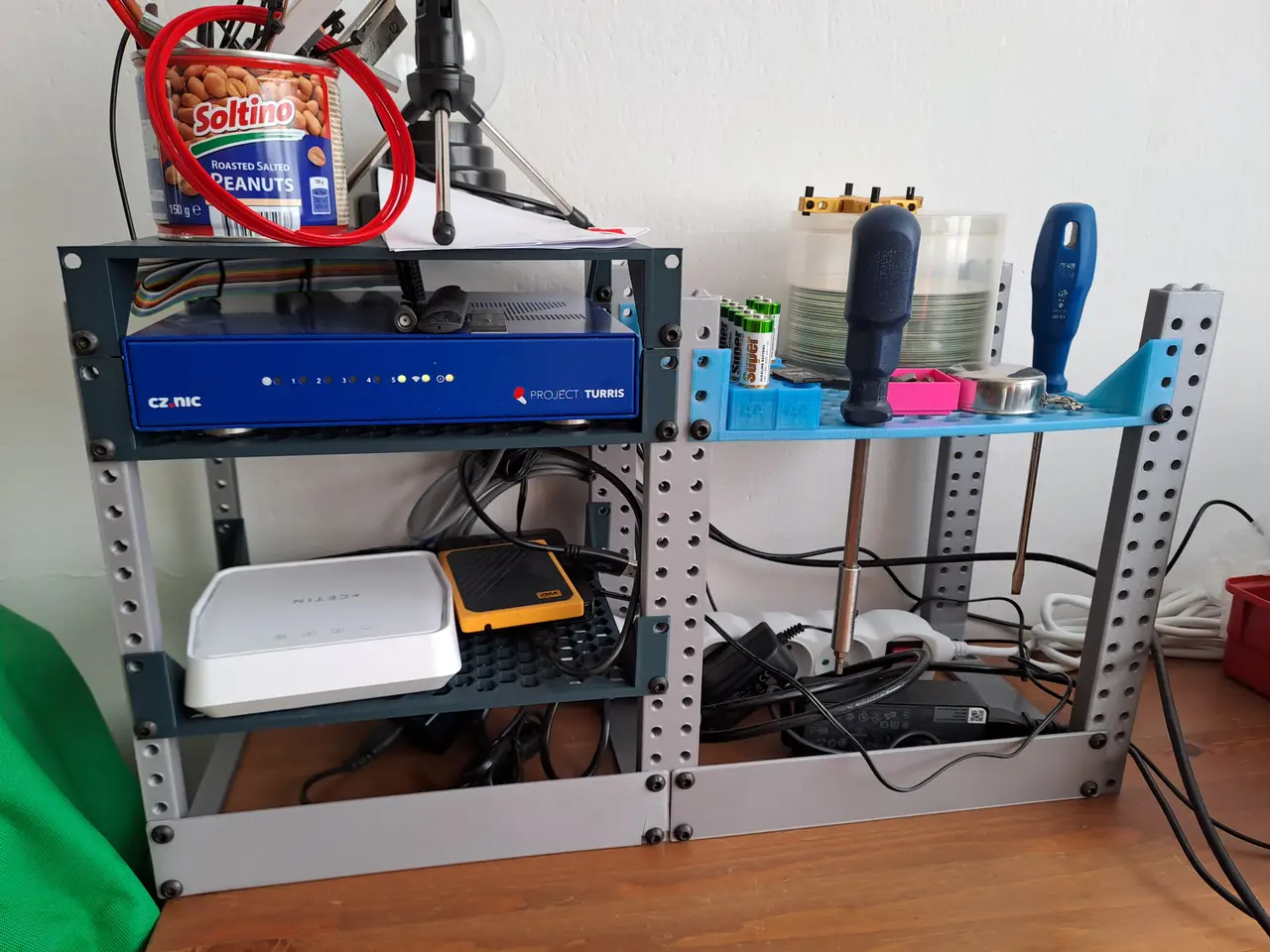

This is printed 10 inch server rack designed for printer with plate 250 mm x 200 mm (Prusa MK3), but some parts (rails) need the bigger one (Prusa XL). Rack has standard sizes, see https://en.wikipedia.org/wiki/19-inch_rack Rails can be stacked on top of each other. You don't need lines or heads, but each rail starts and ends with half U. Shelves can be oriented up or down, but filled shelves are perforated (reinforced) from one side, so be careful about that. There are two groups of shelves: - with and without front-end panel - with and without supports, which you can do in slicer if you want

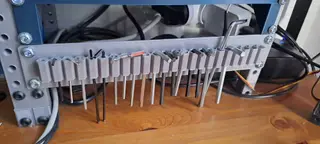

I use standard M6x16 screw with M6 nuts. All parts are printed from PLA, instead of rack_joion which i print from PETG. All parts with default PrusaSlicer infill 15%. Edit 26. Jan 2025 - Added inbus panel

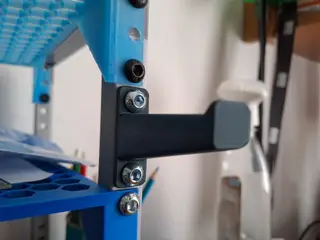

Edit 13. Aug 2024 - Added rack_hook

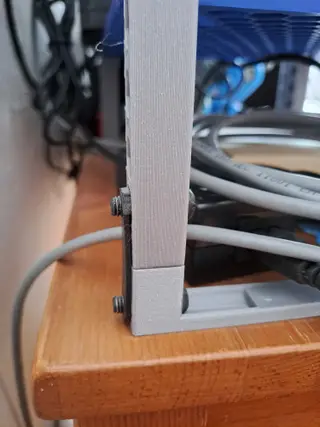

Edit 3. Nov 2024 - Added rack_rail_join to accessories - Added new folder strong shelves
Descripción original del autor, publicada en Printables.
